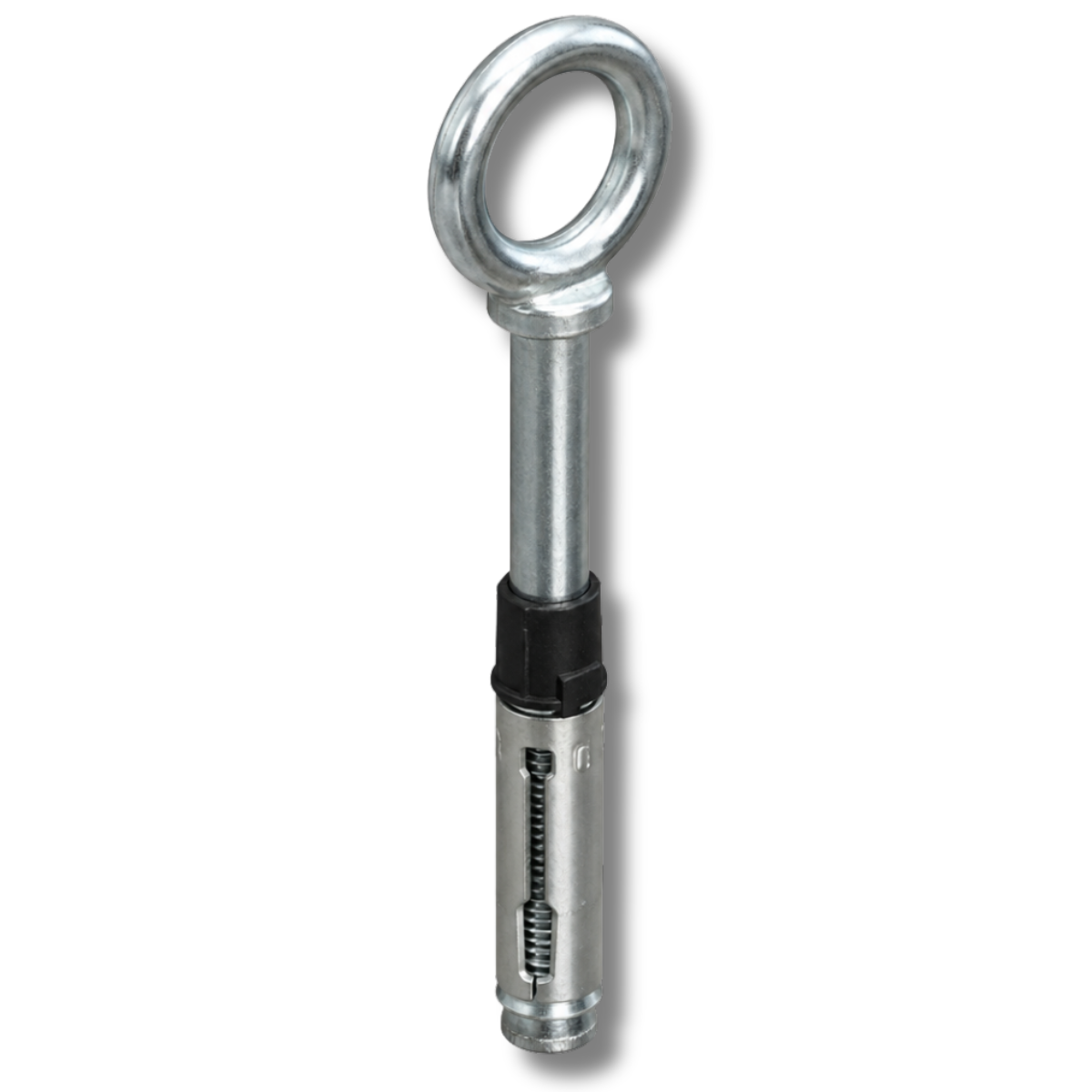

Concrete Mount Anchor with Torque Indicator



The Concrete Mount Anchor with Torque Indicator is a permanent anchorage solution designed for installation into concrete structures for fall protection and rope access applications. Featuring a zinc-coated expansion anchor and 316 stainless steel eyebolt, it provides a reliable single-person anchor point when installed by a competent person.

  • Concrete Mount Anchor with Torque Indicator

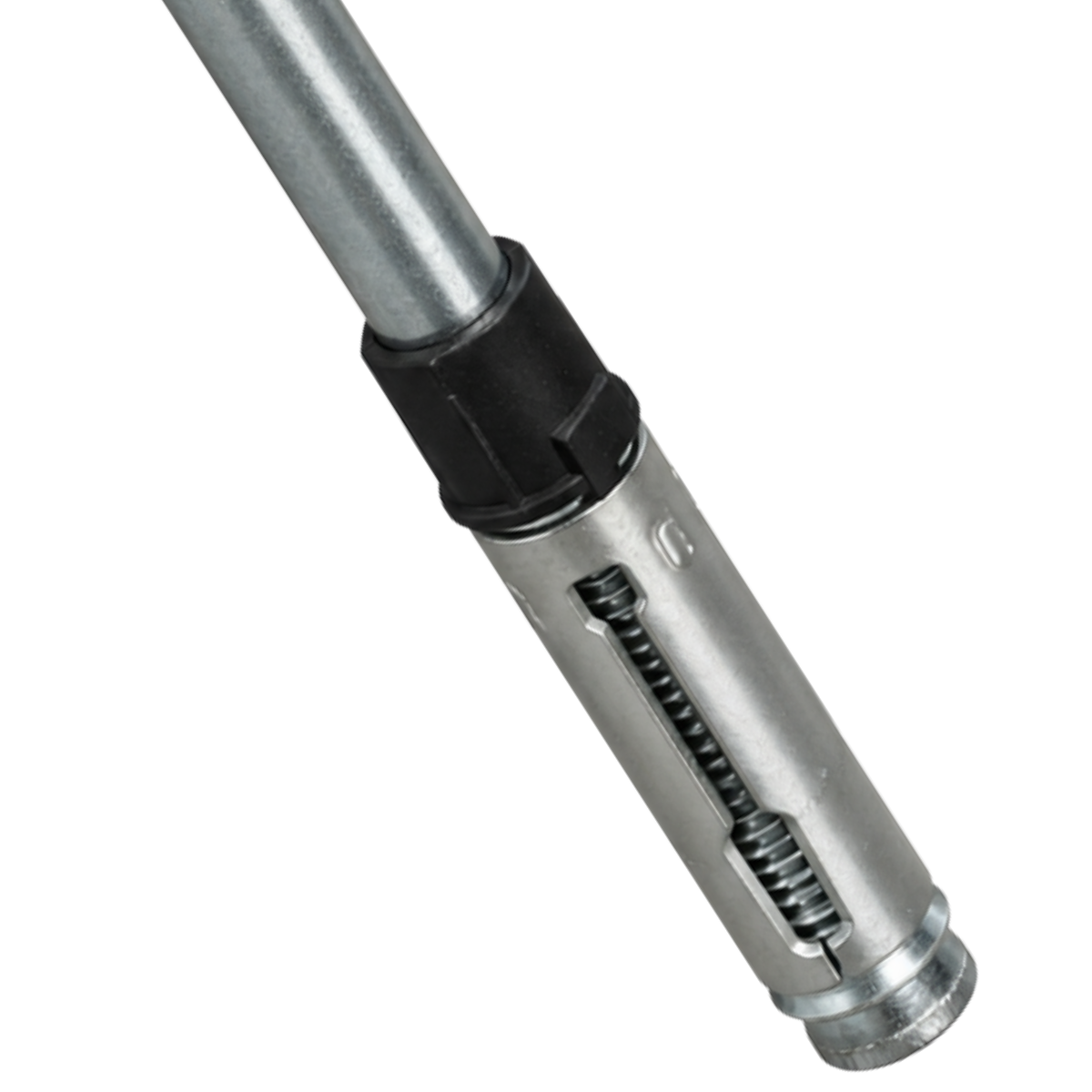

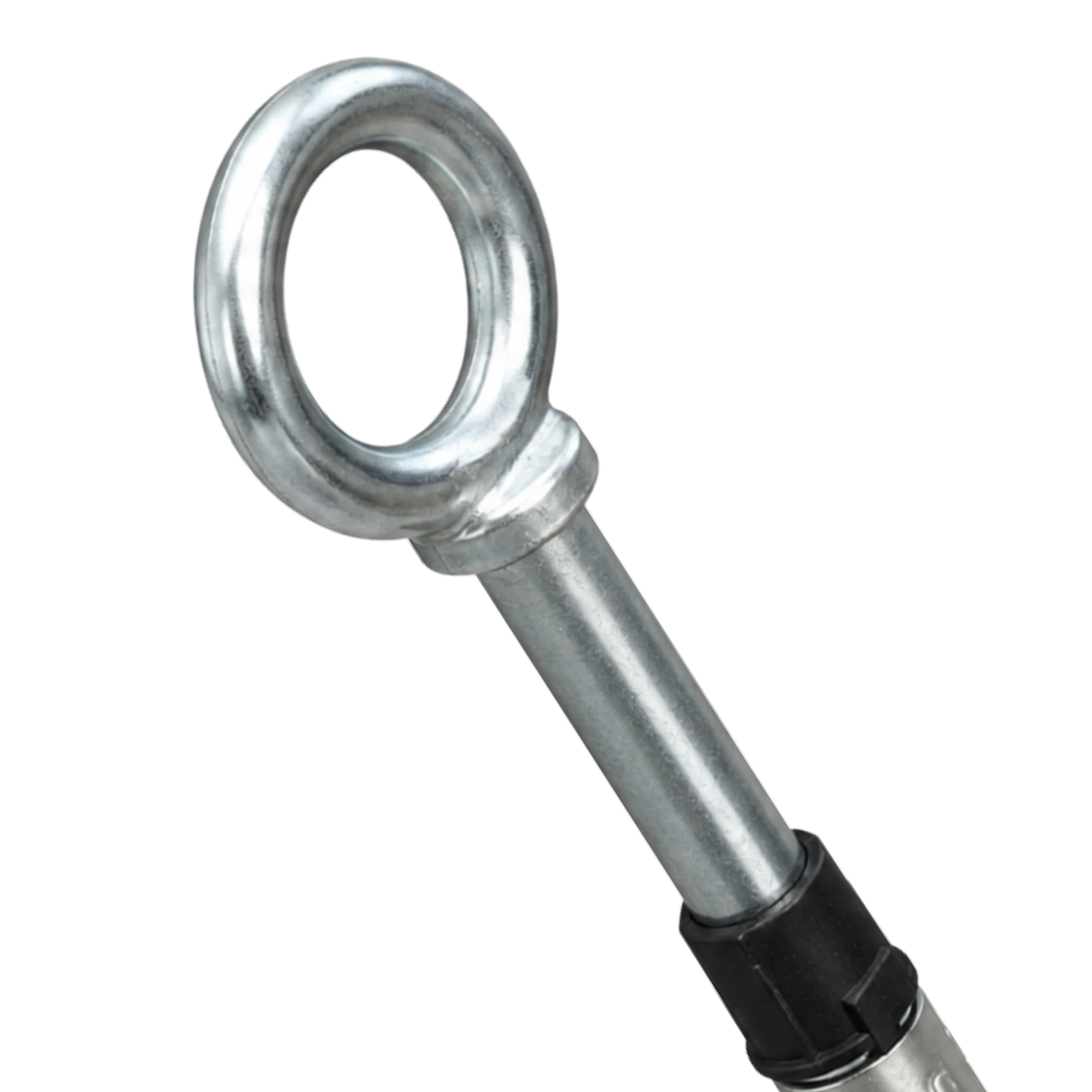

  • Zinc-coated steel expansion anchor with 316 stainless steel M12 eyebolt
  • Suitable for single-person use
  • Rated to 15kN for fall arrest applications
  • Rated to 12kN for rope access applications
  • Eyelet internal diameter of 35mm
  • Designed for installation into concrete with a minimum strength of 20MPa
  • Requires 18mm drilled hole with 125mm installation depth
  • Minimum concrete thickness of 180mm
  • Minimum edge distance of 200mm
  • Minimum anchor spacing of 200mm
  • Designed for shear loading only, with pull angle not exceeding 20°
  • Compatible with approved harness and energy-absorbing lanyard systems where required
  • Shipping Australia Wide
  • Commercial-grade equipment for professional use



This product is intended for commercial or professional use. Installation or setup may require a qualified professional. Please review specifications and ensure suitability before purchase.
